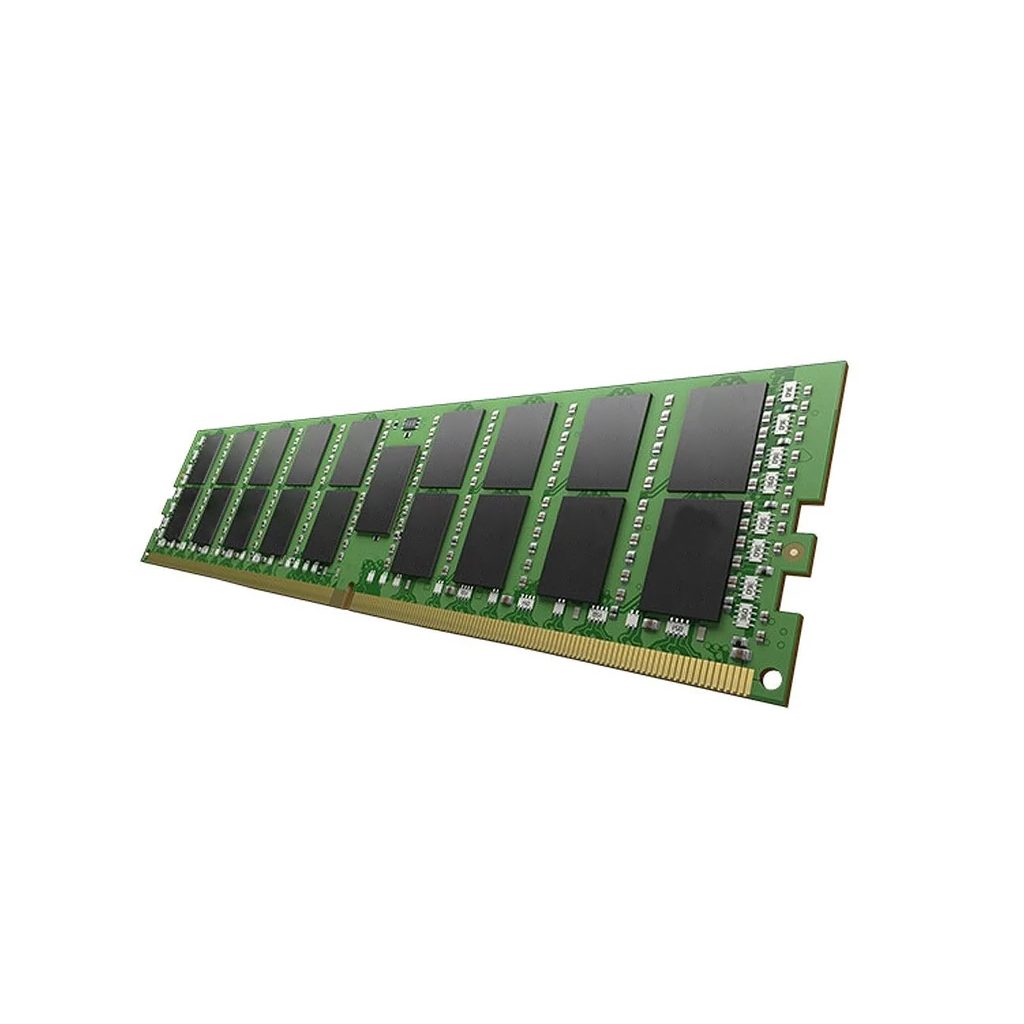

MTA72ASS8G72PSZ-2S6 Micron 64GB DDR4-2666 3DS ECC RDIMM

MTA72ASS8G72PSZ-2S6 Micron 64GB DDR4-2666 3DS ECC RDIMM

MTA72ASS8G72PSZ-2S6 is a 64GB DDR4-2666 3DS registered ECC RDIMM manufactured by Micron. This 288-pin server memory module is designed for compatible enterprise servers, storage appliances and data-center platforms that support high-capacity 3DS registered DDR4 memory.

The module operates at 2666 MT/s with 22-19-19 timing and the standard DDR4 voltage of 1.2V. In addition, its registered ECC architecture supports memory-error detection and correction in compatible systems. Its 3DS construction uses 2-high stacked x4 DRAM packages to provide 64GB of capacity within one module.

Key Features

• 64GB DDR4 memory capacity
• DDR4-2666 data rate
• PC4-21300 industry designation
• 288-pin RDIMM form factor
• Registered ECC architecture
• 3DS 2-high stacked DRAM construction
• 2S2Rx4 organization
• 22-19-19 primary timing
• Standard 1.2V operation
• Onboard temperature sensor and SPD EEPROM
• Manufactured by Micron
• One 64GB module per unit ordered

Common Applications

• High-capacity enterprise servers
• Virtualization and database platforms
• Enterprise storage appliances
• Data-center memory expansion
• Replacement of an identical Micron 3DS RDIMM
• Memory-intensive server workloads

Is MTA72ASS8G72PSZ-2S6 Compatible With My System?

Before ordering, verify that your server supports 288-pin DDR4-2666 3DS registered ECC RDIMM memory. The server must support 64GB modules, 3DS construction and the module’s 2S2Rx4 organization. Support for ordinary DDR4 RDIMMs does not automatically confirm support for 3DS RDIMMs.

This module is not interchangeable with UDIMM, ECC UDIMM, SODIMM or LRDIMM memory. Although this module is a high-capacity registered DIMM, it is not a load-reduced DIMM. Do not mix RDIMMs and LRDIMMs unless the server manufacturer explicitly supports that configuration.

The 2S2Rx4 designation means the module has two package ranks, two logical ranks within each 3DS package and x4-wide DRAM devices. It may also be described less precisely as having four logical ranks. This notation does not indicate the number of modules included. Each unit ordered contains one 64GB RDIMM.

When adding this module to existing memory, compare the complete part number and match the capacity, speed, registered architecture, 3DS construction and rank organization. For best results, follow the server manufacturer’s approved memory population rules and qualified-vendor list.

MTA72ASS8G72PSZ-2S6 Specifications

Need Help Confirming Compatibility?

Compare the complete part number and specifications with your server documentation. For assistance selecting compatible 3DS server memory, contact AMP before ordering.
