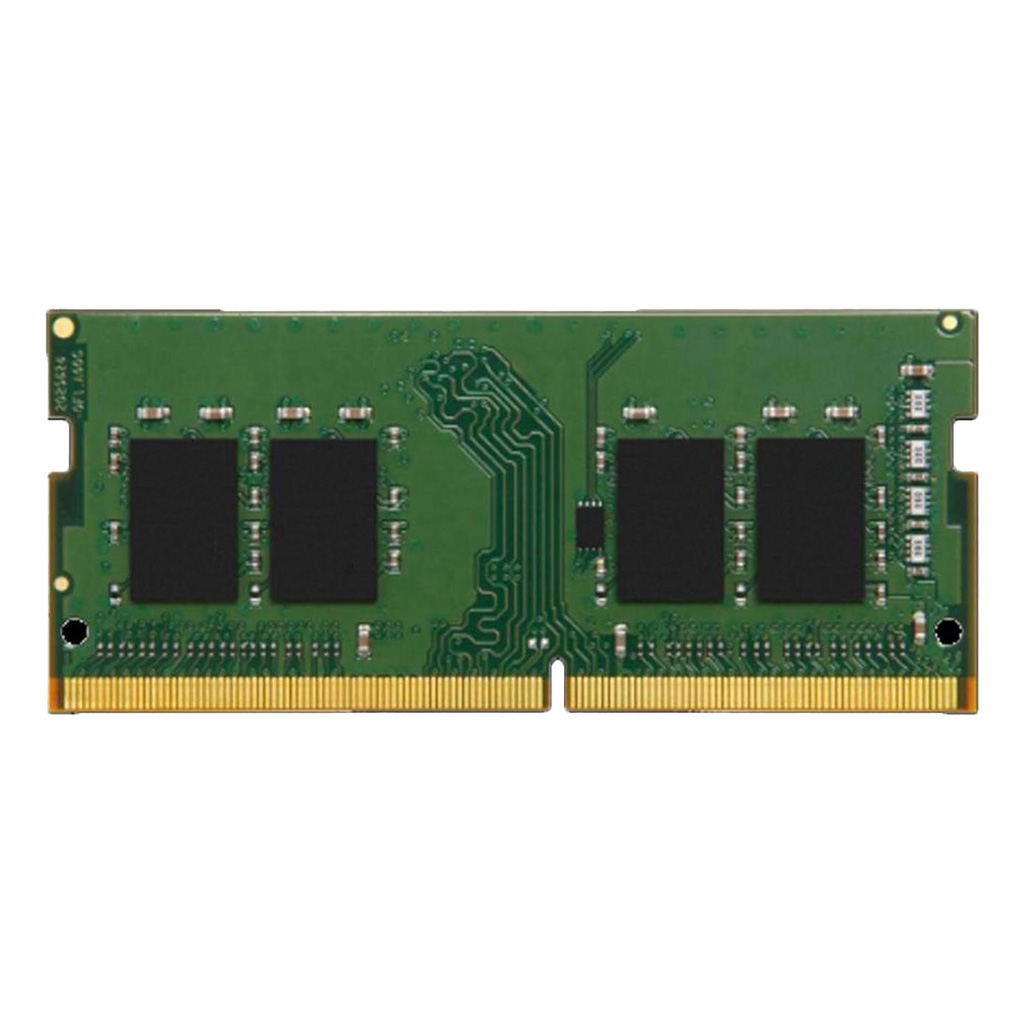

MTA8ATF1G64HZ-2G6 Micron 8GB DDR4-2666 SODIMM
MTA8ATF1G64HZ-2G6 is an 8GB DDR4-2666 non-ECC SODIMM manufactured by Micron. This compact 260-pin memory module is designed for compatible laptops, small-form-factor computers, embedded systems and other platforms that support unbuffered DDR4 SODIMM memory.
The module operates at 2666 MT/s with CL19 latency and the standard DDR4 voltage of 1.2V. In addition, its single-rank 1Rx8 organization makes it suitable for compatible memory upgrades, repairs and replacements requiring this particular module configuration.
Key Features
- 8GB DDR4 memory capacity
- DDR4-2666 data rate
- PC4-21300 industry designation
- 260-pin SODIMM form factor
- Non-ECC, unbuffered architecture
- Single-rank 1Rx8 organization
- CL19 latency
- Standard 1.2V operation
- Manufactured by Micron
- One 8GB module per unit ordered
Common Applications
- Laptop memory upgrades
- Replacement of an identical Micron module
- Compatible mini PCs and compact computers
- Embedded computing platforms
- Commercial and business laptop systems
Is MTA8ATF1G64HZ-2G6 Compatible With My System?
Before ordering, verify that your laptop or system supports 260-pin DDR4-2666 non-ECC SODIMM memory. This product is not interchangeable with desktop UDIMM, ECC SODIMM, registered RDIMM, LRDIMM, DDR3 or DDR5 memory.
This module uses a single-rank 1Rx8 configuration. The “1R” designation describes one logical rank within the module, while “x8” describes the width of its DRAM devices. Each unit ordered includes one 8GB SODIMM.
When adding this module to existing memory, compare the complete part number and try to match the capacity, speed, voltage, rank and device organization. For best results, consult the system documentation or qualified-vendor list. The module may operate at 2400 or 2133 MT/s when installed in a system with a lower supported memory speed.
MTA8ATF1G64HZ-2G6 Specifications
Capacity | 8GB |
Memory Type | DDR4 |
ECC | Non-ECC |
DIMM Type | SODIMM |
Rank | 1Rx8 |
Speed | 2666 |
Voltage | 1.2V |
Depth | 1G |
Width | 64 |
Pins | 260-pin |
Frequency | 1333 |
Temperature | Commercial Temp. 0°C - 85°C |
Module Name | PC4-21300V-S |
Made By | Micron |
Need Help Confirming Compatibility?
Compare the complete part number and specifications with your existing module or system documentation. For assistance selecting compatible memory, contact AMP before ordering.
