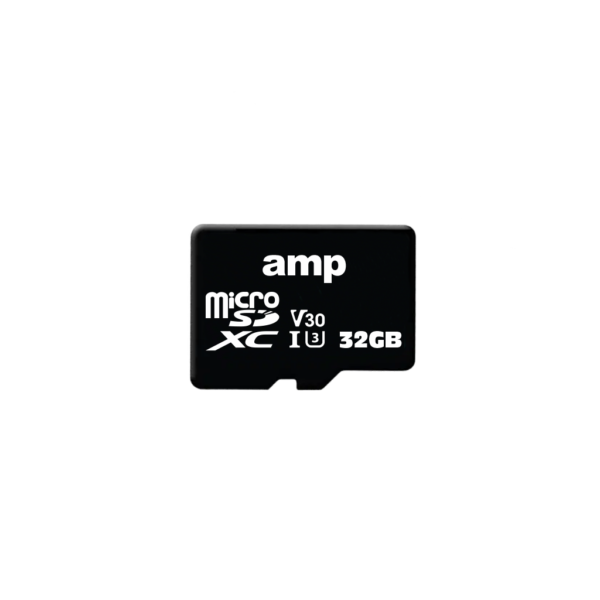

AMP Premium pSLC microSD Card – Commercial Temperature
The AMP Premium microSD Card Commercial Temp. is a compact removable flash-storage solution available in 8GB and 32GB capacities. Its pSLC NAND configuration is designed to provide greater write endurance and reliability than standard consumer-oriented TLC storage for compatible embedded, commercial and professional applications.
The card supports sequential read speeds of up to 100 MB/s and sequential write speeds of up to 92 MB/s. In addition, it supports UHS-I U3 performance, SD mode and SPI mode communication for integration with compatible host systems.
Available Capacities and Part Numbers
| Capacity | AMP Part Number | Card Standard |
|---|---|---|
| 8GB | AMPOLMS008G3S-00ES4YC-3P | microSDHC |
| 32GB | AMPOLMS032G3S-00ES4YC-3P | microSDHC |
Key Features
- Available in 8GB and 32GB capacities
- Compact microSD form factor
- pSLC NAND configuration
- Commercial temperature grade
- Operating temperature range from 0°C to 70°C
- Sequential read performance up to 100 MB/s
- Sequential write performance up to 92 MB/s
- UHS-I U3 speed class
- Supports SD and SPI communication modes
- Eight-pin microSD interface
- Supports hardware secure erase and write protection
- Built-in error detection and correction
- Low-power removable storage
Common Applications
- Embedded computing systems
- Single-board computers
- Data-logging equipment
- Commercial cameras and recording devices
- Portable electronics
- Point-of-sale equipment
- Test and measurement systems
- Human-machine interfaces
- Commercial automation equipment
Which Capacity Should I Choose?
8GB: Suitable for lightweight operating systems, configuration files, firmware storage, compact data logs and applications with lower storage requirements.
32GB: Provides additional capacity for larger data logs, image capture, application files and workloads that require more removable storage space.
Is This AMP microSD Card Compatible With My Device?
Before ordering, confirm that the device supports the selected microSDHC capacity, required file system and UHS-I interface. Although microSD cards share the same physical dimensions, host devices can have different capacity, formatting and performance limitations.
Maximum transfer speeds require a compatible host interface. Actual performance can vary depending on capacity, host controller, workload, file size, formatting and operating environment.
AMP Premium microSD Card Specifications
Form Factor | microSD |
Grade | Commercial |
NAND Type | pSLC |
Operating Temp | 0ºC to 70ºC |
Speed (Sequential Read, MB/s) | 100 |
Speed (Sequential Write, MB/s) | 92 |
Hardware Secure Erase, Write Protect | Supported |
ECC (ECC/non-ECC) | Supported |
Speed | U3 |
Pins | 8 |
CL | 10 |
Need Help Selecting a microSD Card?
Compare the capacity, operating temperature, endurance requirements and interface support with your device documentation. For help selecting an appropriate AMP microSD card, contact AMP before ordering.
